LINING PANELS
Modular integration, crisp lines and a bright reflective surface.
Alpha Clad’s profiled metal lining panel portfolio has been specifically developed to offer cover width compatibility with our external sheet range and allow modular integration with translucent rooflights.
Experience within the industry shows that 0.40mm thick steel is suitable for wall lining. However, for roof lining It is recommended to use a 0.70mm steel gauge due to the enhanced non-fragility it offers, and in some instances allowing the added benefit of safety netting removal prior to installation of the external sheet
Examples within our range are manufacturer specific 0.40mm 19-1000 and 0.70mm 32-1000 liners including Tata LP1000 and RL32. All options provide side lap details that can be easily sealed from above to form a vapour check and are finished on the underside in Bright White Lining Enamel to give a clean light reflective internal surface.
Contact us to discover our full range of internal lining panels including inside rail, acoustically perforated and crimp curved options.
OUTER SHEET COMPATIBILITY
Width options to suit most external sheets.
BRIGHT INTERNAL FINISH
Bright white interior to give clean reflective finish.
-
Can Offer You... -
Modular Lining Panels
-
To Suit External Sheet From
-
Trisobuild Range -
Profile Range -
Shield Profile Range -
Profile Range -
& Much More...
EXTENSIVE PORTFOLIO
Modular Lining Solutions
to Suit External Cladding Sheets
-

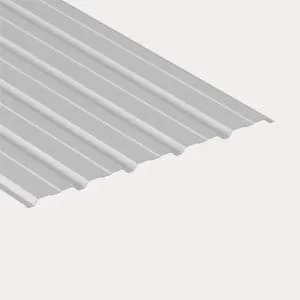

19-1000 Liners -

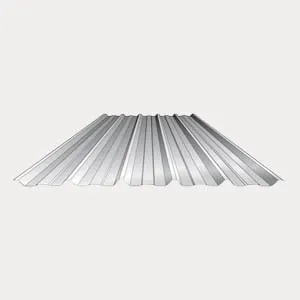

20-1000 Liners -
38-914 Liner -
32-1000 Liners -

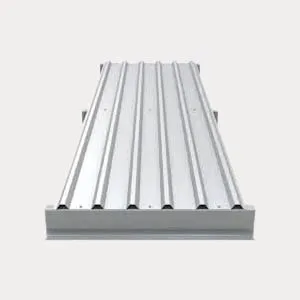

Tata LP1000 RL32 Liners -

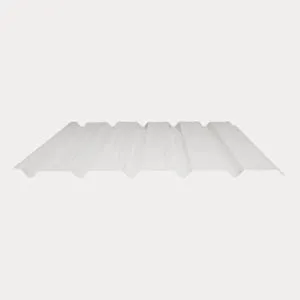

32-1000 Reverse Liners -

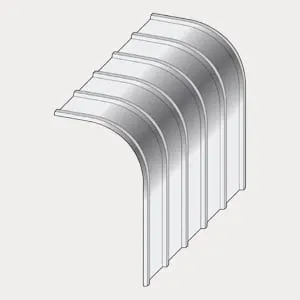

Crimp Curved Liners -
32-1000 Roof Sheet -
JI 19-167-1000 Liner -
34-1000 Liners
PLATINUM® APPROVED
Approved Supplier of Tata Platinum® Plus Systems.
Alpha Clad are proud to be an approved supplier of Tata Building Systems UK Platinum® Plus warrantied systems.
Covered by their full guarantee documentation, we can supply you Trisobuild, Trisomet and Trimapanel Systems that include every component necessary for successful installation.
YOUR CHOICE
Individual Product or Complete System.
Alpha Clad can supply metal cladding sheets as stand-alone products with mill backed coating guarantees or as a component part within our approved warrantied systems.
Complete Warrantied Systems
YOU CAN TRUST US
Our extensive cladding portfolio allows us to offer you the most suitable product for the job.
You can confidently trust Alpha Clad to advise which cladding sheets are best suited for your project, together with all the components and accessories necessary for successful installation.
All these items can be ordered from our dedicated Sales Team so, call us now for helpful advice, quick delivery and excellent rates.
Profile Choice
Our range of leading brand metal cladding sheets contains profiles specifically designed to suit roof, vertical and horizontal wall applications.
Thicknesses
Gauges available have been specifically chosen to suit their respective applications and our team of experts can advise on the most appropriate.
Cut to Length
All products are available in bespoke manufactured lengths to suit your exact project design requirements and help reduce site installation time.
Accessory Suite
A full range of accessories is available including flashing trims, GRP rooflights, sealants and all fixings necessary for successful installation.
Coloured Coatings
For aesthetics and longevity, coatings such as Posco Leathergrain Plastisol, Colorcoat LG, HPS200 Ultra, Prisma, XL Forte, Spectrum, Ultra 60 and Ultra X are available.
Product or System
Upon request all products can either be supplied individually with a manufacturer coating guarantee, e.g. Confidex® etc. or as part of a complete system warranty.
